KFI Ranger Multi-Mount Kit UTV-675 for Versatile Utility Vehicle Attachment

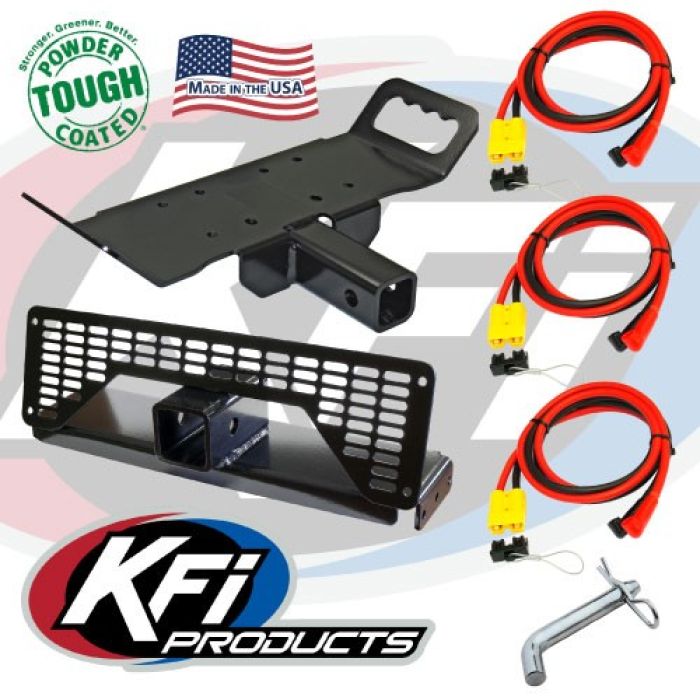

Kit includes the following:

(1) Front upper 2" Receiver that mounts in the location shown in the picture (#100675)

(1) 2" Receiver Winch Mount (#100620)

(1) 20" Quick Connect that gets wired to your winch leads (#QC-20)

(1) 48" Quick Connect that goes from your winch contactor to the front of your Ranger (#QC-48)

(1) 120" Quick Connect that goes from your winch contactor to the rear of your Ranger (#QC-120)

(1) Standard 5/8" Hitch Pin (#ATV-20PIN)

100% Made in USA

Constructed of 3/16" steel

Unlike all other competitors, our products are metal bead blasted before they are powder coated for the best possible finish prep.

Powder-coated black for supreme durability

Complete installation instructions included

All mounting hardware included

Roller fairlead and winch not included

Designed to work with the following winches:

Note: This mount requires a roller fairlead bracket that comes with most of the winches out there.

If your winch kit did not come with a fairlead bracket you will need the following:

For most winches with a 4-Hole 3.00" x 4.875" (STANDARD) KFI #100495

For most winches with a 4-Hole 3.00" x 6.600" (WIDE) KFI #100695

For WARN VRX or AXON winches with a 3.00" x 4.875" (STANDARD) KFI #101715

KFI: ST17 / S2000 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
KFI: AM-25 / AM-35 / AS-25 / AS-35
KFI: AS-50x / AS-50wx
WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce
WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
WARN: AXON 35 / AXON 35-S / AXON 45RC
WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
WARN: Vantage 2000-3000lbs / ProVantage 2500-3500lbs
WARN: RT40 / XT40
WARN: Vantage 4000lbs / ProVantage 4500lbs
RAMSEY: ATV2500 / ATV3000
SUPERWINCH: Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
MASTER LOCK: 1500lbs #2955AT
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500
BADLAND: Apex 5500 Wide
BADLAND: 2-Hole Winches
BADLAND: Standard Winches
BADLAND: WIDE Winches
CHAMPION: 2-Hole Winches
CHAMPION: Standard Winches
CHAMPION: WIDE Winches
CHAMPION: 14001 and 14061
SMITTYBILT: XRC 2.0
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
Listed models come with incorrect ATV roller fairleads.
SMITTYBILT: XRC 3.0 / XRC 4.0
XGEAR: X3000 / X4000
4-Hole Standard (3.00" x 4.875" bolt pattern)
KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
All with 3.00" x 4.875" bolt pattern mount-up.
All with 3.00" x 6.600" bolt pattern mount-up.
Traveller: 1078311
Traveller: 1078088 / 1078302
Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
Possibly many others with the below standard mounting patterns, call to confirm.
4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
2-Hole (3.10" with rollers that are 4.875" bolt pattern)

The KFI Ranger Multi-Mount Kit UTV-675 is designed to enhance the functionality of your utility vehicle by providing a reliable and adaptable mounting solution. Built by KFI, this kit allows for secure attachment of various accessories, making it ideal for work, recreation, or utility tasks. Its durable construction ensures long-lasting performance even in demanding environments, giving you confidence during every use. The kit’s multi-mount system offers flexible positioning, enabling you to customize your setup for optimal efficiency and convenience. Whether you're installing lights, racks, or other accessories, this kit seamlessly integrates with your UTV to expand its capabilities.

Constructed with high-quality materials, the KFI UTV-675 supports heavy-duty applications and resists corrosion, ensuring longevity across different weather conditions. Its straightforward installation process allows for quick setup, saving you time and effort. Designed with precision engineering, this mounting kit maintains a secure fit, reducing vibrations and movement during operation. The KFI Ranger Multi-Mount Kit is a versatile addition for any UTV owner seeking to maximize their vehicle’s potential and improve overall utility. It’s compatible with a wide range of accessories, making it a practical choice for both professional and recreational use.

Features:

• Versatile multi-mount system for customizable accessory attachment

• Constructed from durable, corrosion-resistant materials

• Supports heavy-duty applications with secure fit and stability

• Easy and quick installation process

• Designed by KFI for reliable performance and long-lasting use
