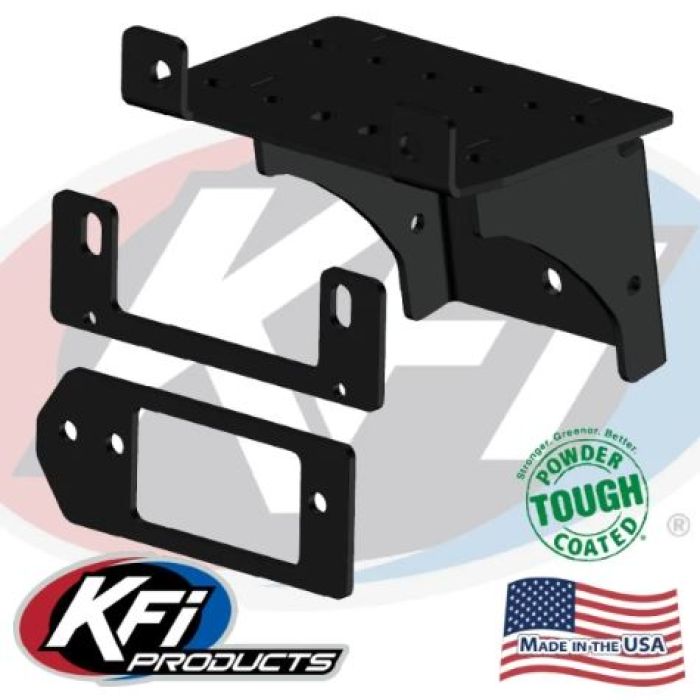

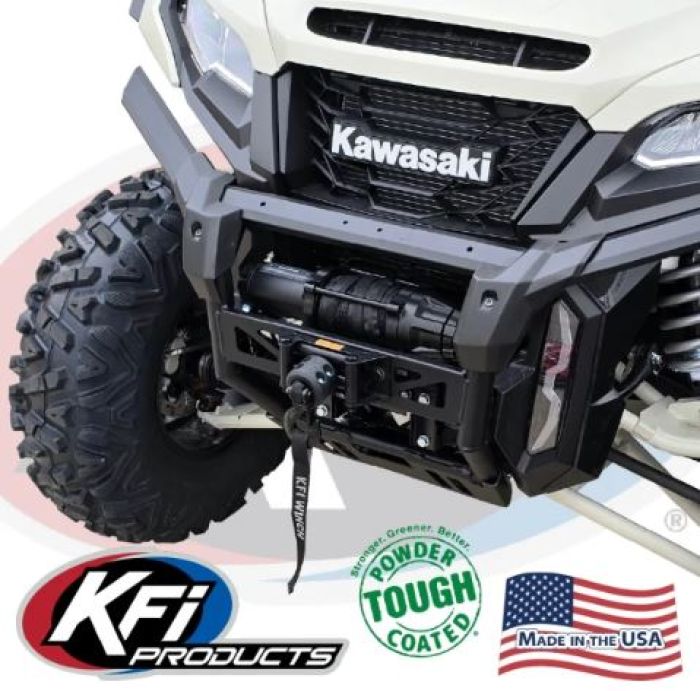

KFI WINCH MOUNT KAWASAKI RIDGE

Kawasaki

Ridge (Base / HVAC / Ranch Edition / ST)2026

Ridge Crew (Base / HVAC / Ranch Edition / ST)2026

Designed to work with the following winches:

KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2

KFI: U45w-R2 / SE45w-R2(Requires Fairlead Bracket as spacer)

KFI: AM-25 / AM-35 / AS-25 / AS-35

KFI: AS-50x

KFI: AS-50wx (Requires Motor End Cap to be rotated 45 degrees)

WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S

WARN: VRX 45 / VRX 45-S

WARN:AXON 35 / AXON 35-S / AXON 45RC

WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S

WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s

WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30

WARN: RT40 / XT40

WARN: Vantage 2000-3000lbs / ProVantage 2500-3500lbs

WARN: Vantage 4000lbs / ProVantage 4500lbs

RAMSEY: ATV2500 / ATV3000

SUPERWINCH: Terra25 / Terra35 / Terra 2500 (SR) / Terra 3500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV

SuperATV: WN-2500 * WN-3500

Requires Fairlead with 4.875" Bolt Up Pattern on XR Model Only

Listed models come with incorrect ATV roller fairleads.

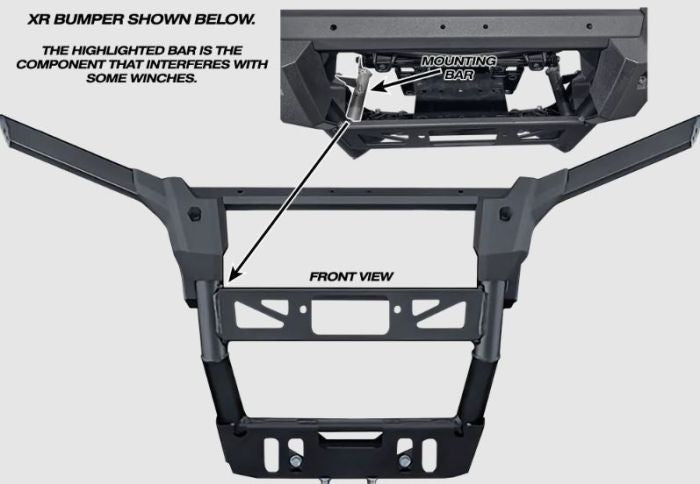

Fairlead Options for XR Models ONLY (Not needed on standard Model)

KFI Synthetic Roller Fairlead (Standard) #SE-RF

ATV Hawse Fairlead Black #ATV-HAW-BLK

ATV Hawse Fairlead Polished #ATV-HAW-POL

MILE MARKER: PE2.5 / PE3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500

MASTER LOCK: 1500lbs #2955AT

Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.

CYCLE COUNTRY: Work Power 1500 and 2500 / PowerMax 2500 and 3500

BADLAND: 2-Hole Winches (Click Here for Details)

BADLAND: Standard Winches (Click Here for Details)

BADLAND: WIDE Winches: (Click Here for Details and NOTE ABOVE)

CHAMPION: 2-Hole Winches (Click Here for Details)

CHAMPION: ATV 4-Hole Winches (Click Here for Details)

CHAMPION:UTV 4-Hole Winches (Click Here for Details)

CHAMPION: WIDE Winches: (Click Here for Details)

KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C

KEEPER CORP. TRAKKER: KT2000

Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.

SMITTYBILT: XRC 2.0

Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.

Listed models come with incorrect ATV roller fairleads.

SMITTYBILT: XRC 3.0 / XRC 4.0

XGEAR: X3000 / X4000

4-Hole Standard (3.00" x 4.875" bolt pattern)

VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)

All with 3.00" x 4.875" bolt pattern mount-up

All with 3.00" x 6.600" bolt pattern mount-up

Traveler: 1078311

Traveler: 1078088 / 1078302

Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF

Possibly many others with the below standard mounting patterns, call to confirm.

4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)

4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)

2-Hole (3.10" with rollers that are 4.875" bolt pattern)

QUADBOSS: RP25 / RP35

100% MADE IN USA

Constructed of 3/16” steel.

Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.

Powder coated black for supreme durability.

Complete installation instructions included.

All mounting hardware included.

Satisfaction guaranteed.

Roller fairlead and winch not included.
