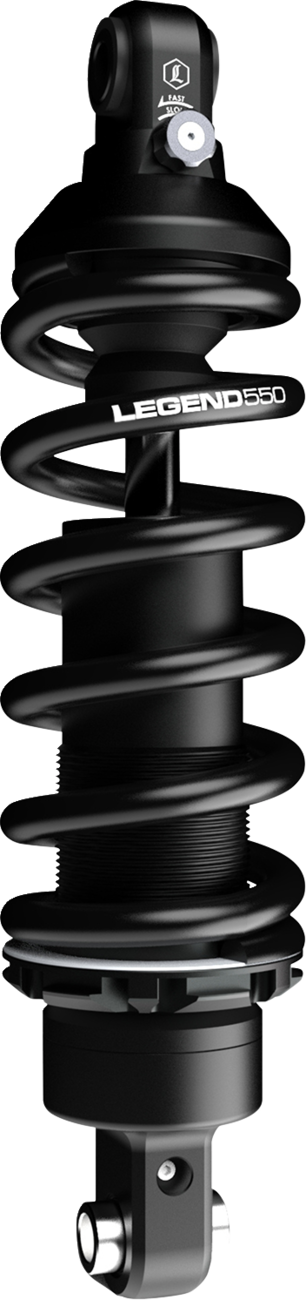

Legend Suspension Revo-A Shock for M-8 Softail, 12.5 Inch Standard - Part 9310-0001

The Legend Suspension Revo-A Shock absorber, model 9310-0001, is specifically engineered for M-8 Softail models to enhance ride quality and handling. This mono shock features a 12.5-inch length suitable for standard applications, with options available in 13 and 13.5 inches for customized fitment. Crafted with a 46 mm billet aluminum mono tube design, it utilizes a lightweight high-flow piston for superior fluid flow, resulting in improved handling and precise bike control. The hard anodized finish not only adds durability but also provides a sleek black appearance, complementing the overall aesthetic of your motorcycle.

This shock incorporates adjustable preload, allowing riders to tailor the suspension to their personal weight and load requirements, ensuring optimal comfort and performance across various riding conditions. The preload wrench included simplifies adjustments, making it easy for riders to fine-tune their suspension without hassle. Legend's touring-specific spring rates deliver an exceptional balance of ride comfort and resistance to bottoming out, making this shock ideal for all-day riding.

Features such as adjustable rebound damping enable quick, precise adjustments with a simple turn of a knob, allowing riders to customize their ride quality for different terrains and riding styles. The internal floating nitrogen piston ensures consistent damping performance, while deflective disc valving self-adjusts to frequency, providing controlled and reliable damping behavior. Low friction sleeve bearings at both ends facilitate smooth installation and operation, preventing shock bind and promoting longevity. The heavy-duty chromed shaft, which is 14% larger in diameter, adds strength and durability to the assembly.

Designed for compatibility with Legend Axeo front suspension, this shock is assembled by hand in Sturgis, SD, USA, ensuring quality control and craftsmanship. The shock is easy to install using OEM hardware and is built to withstand rigorous riding conditions, making it a reliable upgrade for your Softail. With its combination of advanced features and durable construction, the Legend Revo-A Shock delivers improved ride comfort, enhanced performance, and a personalized riding experience.

Features:

• Designed specifically for M-8 Softail models with 12.5-inch length, available in 13 and 13.5 inches

• Adjustable preload for rider setup and minimal preload adjustment for changing rider weights and loads

• Legend's touring-specific spring rates provide superior ride comfort and resistance to bottoming out

• Adjustable rebound damping for fast, precise, and repeatable ride comfort and performance adjustments

• Optimum rebound performance that can be fine-tuned for rider weight, ride style, and personal preferences

• Low friction sleeve bearings at top and bottom for ease of installation and shock floating to prevent bind

• Hard anodized, 46 mm billet aluminum mono tube design with high flow piston for better fluid flow and handling

• 14% larger, hard chromed shaft for increased strength and durability

• Internal floating nitrogen piston ensures consistent damping performance

• Deflective disc valving self-adjusts to frequency for controlled damping behavior

• Legend's durable, low friction sealing system and sliding bearings for enhanced performance and feel

• Available in Black Type III hard coat anodize finish

• Easy installation with OEM hardware, includes preload wrench for simple adjustments

• Compatible with Legend Axeo front suspension for optimal performance

• Hand assembled in Sturgis, SD, USA, ensuring quality and craftsmanship
