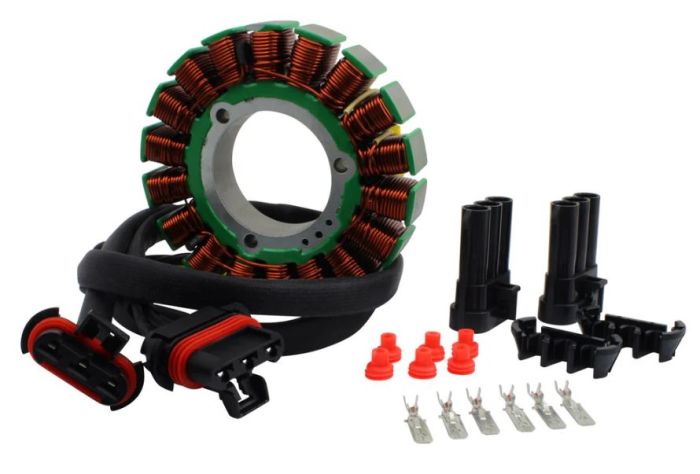

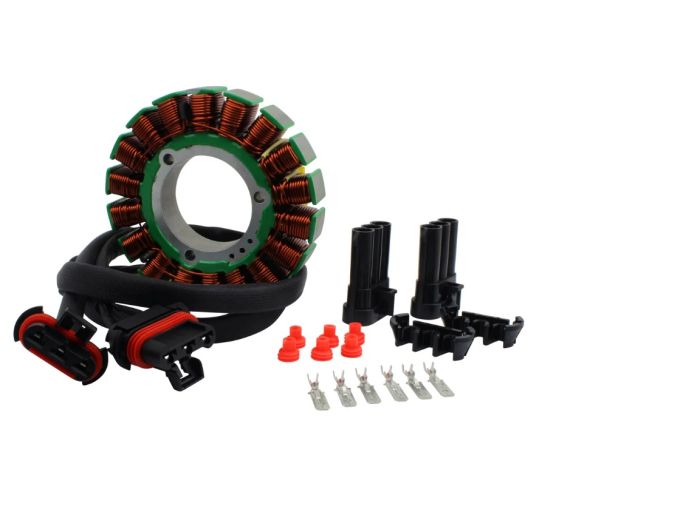

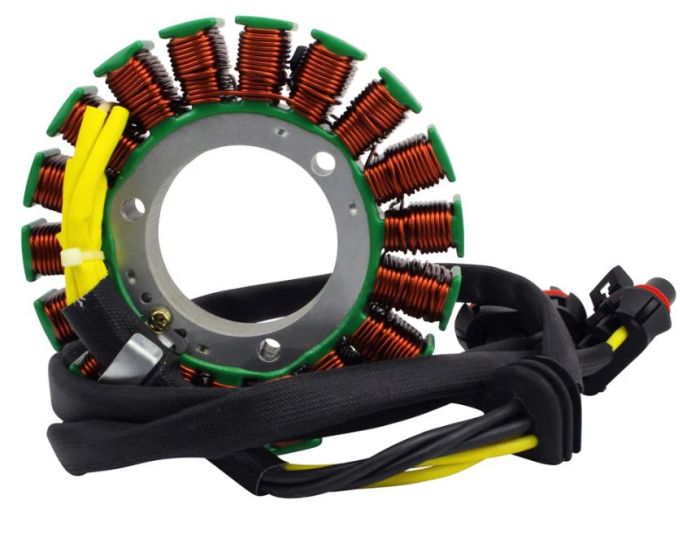

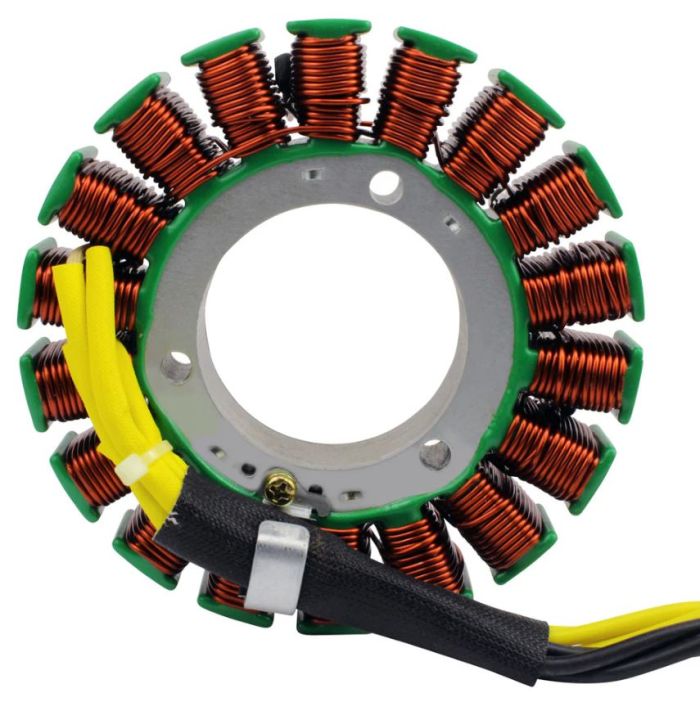

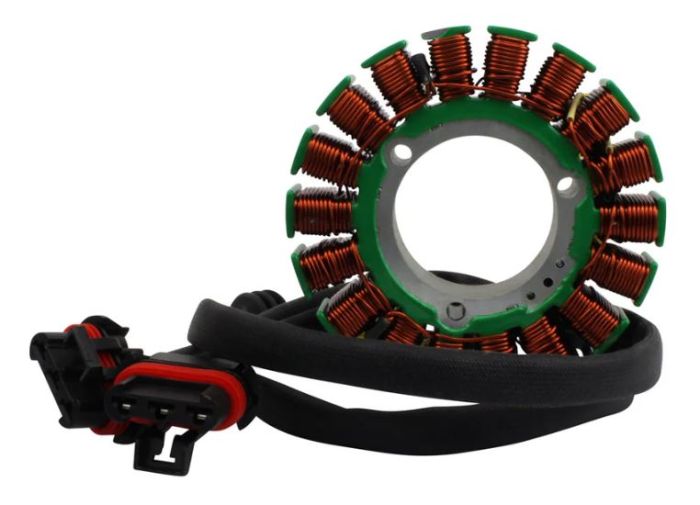

RMSTATOR GENERATOR STATOR 900W DUAL OUTPUT

Brand new aftermarket generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 126 mm
Thickness: 20 mm
Length of wires stator to grommet: 120 mm
Length of wires grommet to plug: 550 mm

Other specifications:
Number of wires: 6
Number of plugs: 2
Number of pins: 6
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.7 ohms +/-20%
Alternator: Black to Black = 0.7 ohms +/-20%

Before installing your new generator stator

• Check the AC output of the stator
• Replace any burned or corroded connectors on stator and regulator rectifier
• Check and repair any melted wiring
• Use hi-temp dielectric grease on all connectors

Our stator might have a different wire color code than your original part.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible but no less than 0.010"".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Vehicle Fitments

2025 Polaris RZR PRO XP 42025 Polaris RZR PRO XP2025 Polaris RZR PRO XP 4 Ultimate2025 Polaris RZR PRO S2025 Polaris RZR PRO XP Ultimate2025 Polaris RZR PRO S 4 Premium2025 Polaris RZR PRO S 4 Sport2025 Polaris RZR PRO S 4 Ultimate2024 Polaris RZR PRO XP 42024 Polaris RZR PRO XP2024 Polaris RZR PRO XP 4 Ultimate2024 Polaris RZR Turbo R 42024 Polaris RZR PRO XP Ultimate2024 Polaris RZR Turbo R Sport2024 Polaris RZR Turbo R Ultimate2024 Polaris RZR Turbo R Premium2023 Polaris RZR PRO XP 42023 Polaris RZR PRO XP2023 Polaris RZR PRO XP 4 Ultimate2023 Polaris RZR Turbo R 42023 Polaris RZR PRO XP Ultimate2023 Polaris RZR Turbo R Sport2023 Polaris RZR Turbo R Ultimate2023 Polaris RZR Turbo R Premium2022 Polaris RZR PRO XP 4
