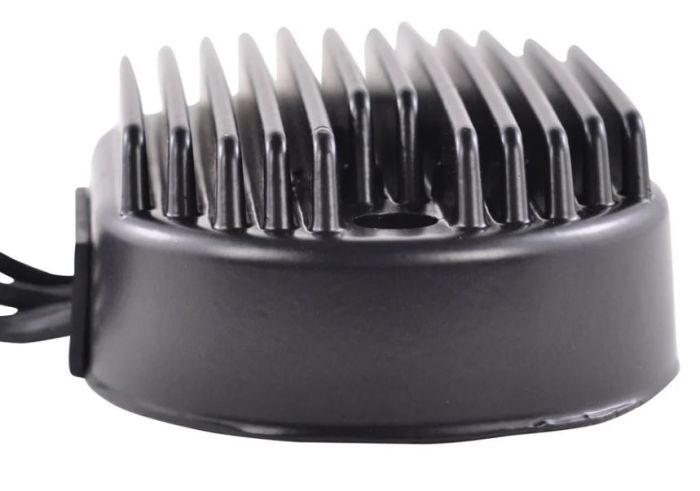

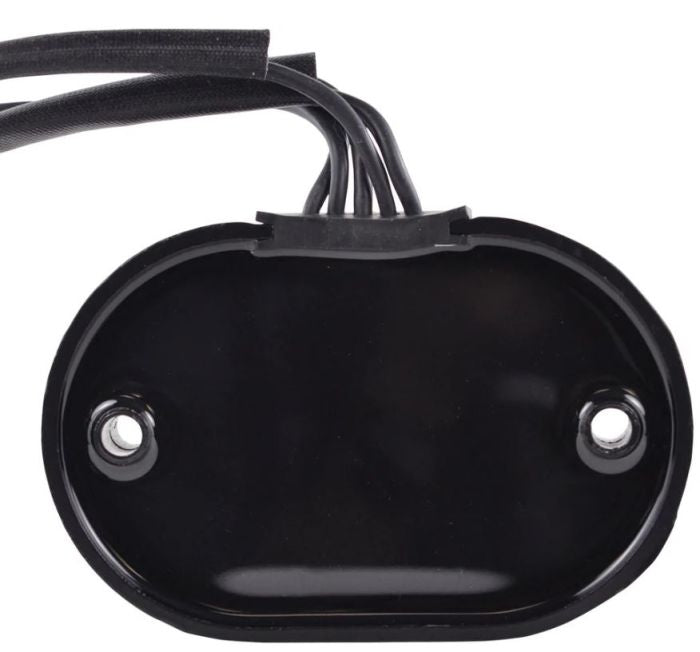

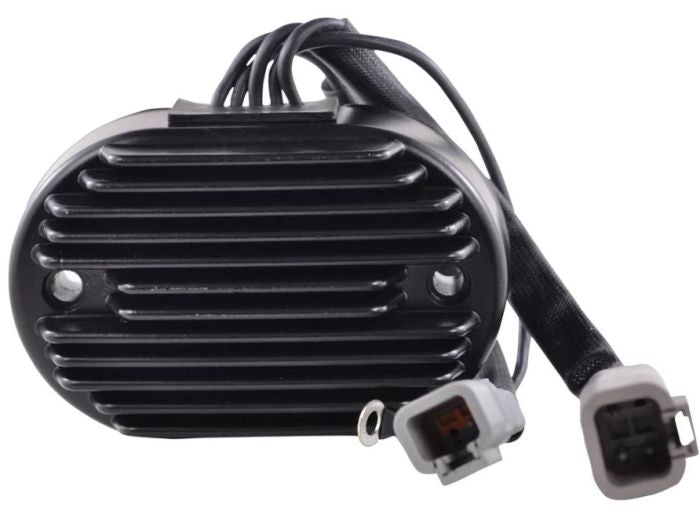

RMSTATOR MOSFET VOLTAGE REGULATOR RECTIFIER

STOP BURNING YOUR REGULATOR RECTIFIER !It is time to update or replace your voltage regulator with the advanced MOSFET type. It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components

Dimensions :

Width : 90mm

Length : 130mm

Height: 40mm

Fixation holes center to center : 95mm

Wires length: 200mm 200mm

Other specifications :

Number of plugs : 2

Number of pins : 5

Number of wires: 5

Minimum Charging Voltage: 14.5V +/- 0.5V

Maximum Charging Current: 50A/500W

Open Circuit Voltage: <15V

Operation Temperature: -20⁰ to 85⁰

Vehicle Fitments

2007 Harley Davidson Fat Boy 1584

2007 Harley Davidson Heritage Softail 1584

2007 Harley Davidson Softail 1584

Before installing your new voltage regulator rectifier;

Check the AC output of the stator.

Replace any burned or corroded connectors on stator and regulator/rectifier

Check and repair any melted wiring.

Use hi-temp dielectric grease on all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing.

Ensure proper installation by a qualified technician to avoid malfunction.
