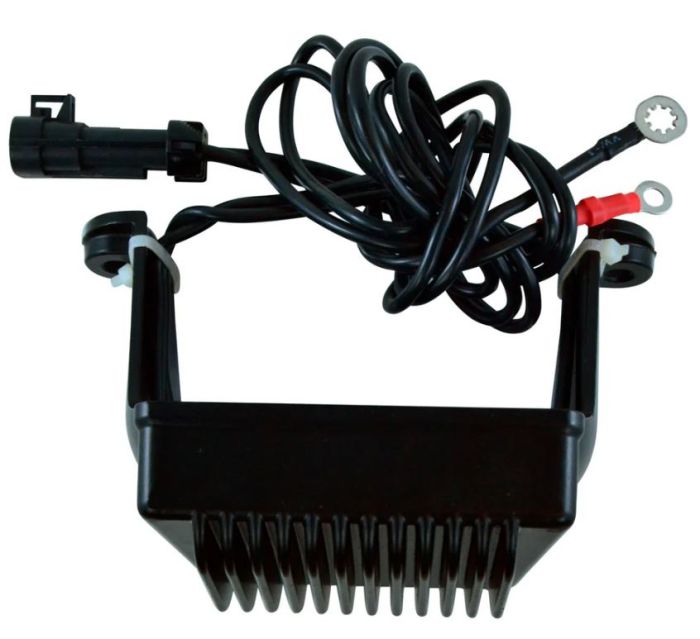

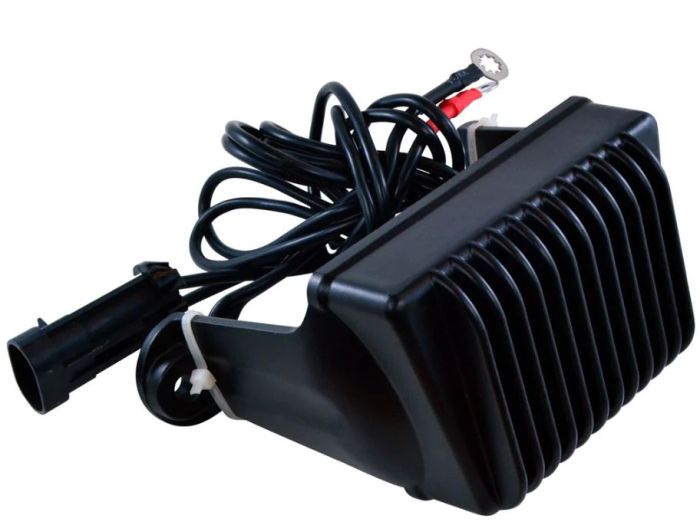

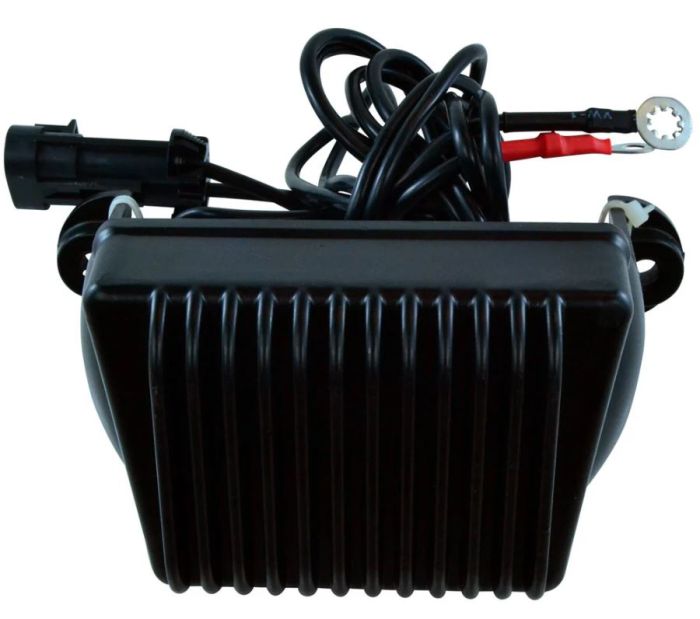

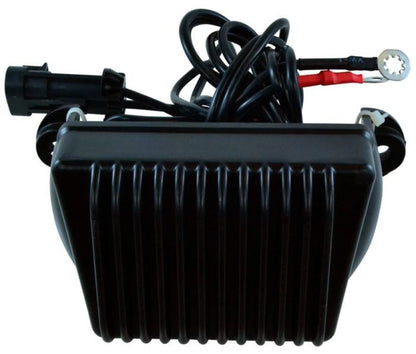

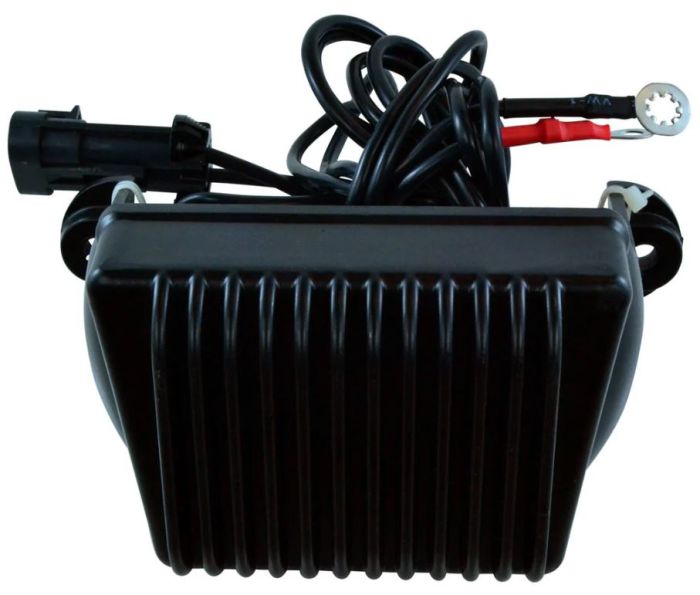

RMSTATOR VOLTAGE REGULATOR RECTIFIER

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment
• All products shipped are tested

Dimensions:
Width: 86 mm
Length: 175 mm
Height: 115 mm
Stator wire length: 250 mm
Battery wires length: 1200 mm
Fixation holes center to center: 155 mm

Other specifications:
Number of plugs: 3
Number of pins: 4
Number of wires: 4
Minimum Charging Voltage: 14.5V +- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: 15V
Operation Temperature: -20⁰ to 85⁰

Before installing your new Voltage Regulator :

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator.
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Vehicle Fitments

2003 Harley Davidson Electra Glide 14502003 Harley Davidson Road Glide 1450 Touring2003 Harley Davidson Road King 14502003 Harley Davidson Road King 1450 Police2003 Harley Davidson Road King 1450 Touring2003 Harley Davidson Electra Glide 1450 Police2003 Harley Davidson Electra Glide 1450 Touring2002 Harley Davidson Electra Glide 14502002 Harley Davidson Road Glide 1450 Touring2002 Harley Davidson Road King 14502002 Harley Davidson Road King 1450 Touring2002 Harley Davidson Screamin Eagle Road King 15502002 Harley Davidson Electra Glide 1450 Touring
