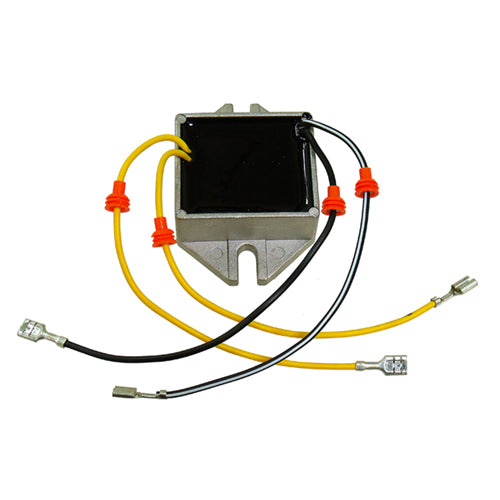

VOLTAGE REGULATOR

OE-replacement Voltage Regulator for Ski-Doo 500/600/700/800 (00-02).

Ski-Doo OE: 515175491

This a/c voltage regulator must be installed on a snowmobile with MANUAL START ONLY.

Not compatible with Electric Start models. Verify your OEM Regulator.

01-154-17 instructions

Attach black wire with white line to the run non-regularized positive (+)

Attach black wire to the run non-regularized negative (-)

Attach the yellow wire to the regularized positive (+) output circuit

Attach the other yellow wire to the other regularized positive (+) output circuit

If it is not necessary to connect the second positive output, be sure to protect the wire end to avoid any contact with other parts or damage will result
